DTN 60 – GU Automatic Swing Door System

DTN 60 AUTOMATIC SWING DOOR SYSTEM is a product from the GRETSCH-UNITAS GROUP. The Automatic System is a smooth and durable.

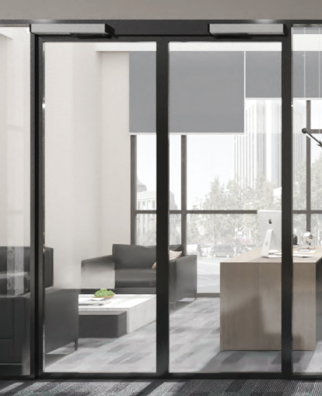

G-U DTN 60 Swing Door System

ACCURATE MEASUREMENT
Microprocesser provide precise position control
and speed control to derive the option motion
controls the movement path of each door
ALUMINUM ALLOY HOUSING
Simple design from the inside out, highlightting
the quality each line is refined by the designer, and
strive for more per-fection
POWER FAILURE PROTECTION
In case of power failure, the unit will provide spring
force for automatic shutdown, safe and secure
PULL ARM / PUSH ARM
Depending on the application, pull-arm and
push-arm mounting option are available

Description

Description	DTN 60
Supply Power	220V AC ±10%, 50/60Hz
Power Consumption	100W (max)
Drive Unit	24V DC Motor with spring closer
Drive Arm	Pull arm (inward open) / Push arm (outward open)
Anti-Press Device	STD
Open Angle	80° – 100°
Opening Time (Speed)	3 – 7 seconds (adjustable)
Closing Time (Speed)	3 – 7 seconds (adjustable)
Hold-Open Time	0.5 – 30 seconds (adjustable)
Environment Temperature	-20°C to 45°C
Relative Humidity	≤85%
Unit Size	610 × 128 × 88 mm
